Stmicroelectronics
STW13NK80Z
12A, 800V, 0.65ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, ROHS COMPLIANT PACKAGE-3
PackageTO-247-3
Current Rating12A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STW13NK80Z technical specifications.
General
| Package/Case | TO-247-3 |
| Continuous Drain Current (ID) | 12A |
| Current Rating | 12A |
| Drain to Source Breakdown Voltage | 800V |
| Drain to Source Resistance | 650mR |
| Drain to Source Voltage (Vdss) | 800V |
| Fall Time | 55ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 3.48nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 230W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 230W |
| Rds On Max | 650mR |
| RoHS Compliant | Yes |
| Series | SuperMESH™ |
| Turn-Off Delay Time | 95ns |
| DC Rated Voltage | 800V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STW13NK80Z Datasheet
Download the complete datasheet for Stmicroelectronics STW13NK80Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

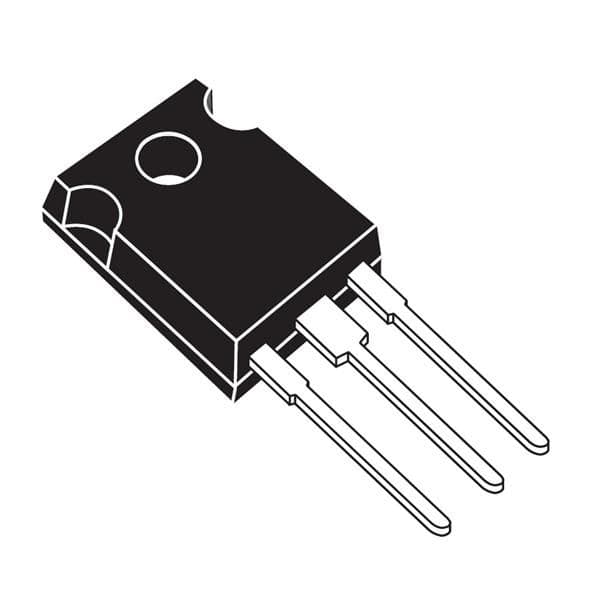

Product Images
