Stmicroelectronics
STW20NK70Z
20A, 700V, 0.285ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247AC, TO-247, 3 PIN
PackageTO-247-3
Current Rating20A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STW20NK70Z technical specifications.
General
Package/Case
TO-247-3
Continuous Drain Current (ID)
20A
Current Rating
20A
Drain to Source Breakdown Voltage
700V
Drain to Source Resistance
285mR
Drain to Source Voltage (Vdss)
700V
Fall Time
38ns
Gate to Source Voltage (Vgs)
30V
Input Capacitance
6nF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
350W
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
350W
Rds On Max
285mR
RoHS Compliant
Yes
Series
SuperMESH™
Turn-Off Delay Time
130ns
DC Rated Voltage
700V
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STW20NK70Z Datasheet
Download the complete datasheet for Stmicroelectronics STW20NK70Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

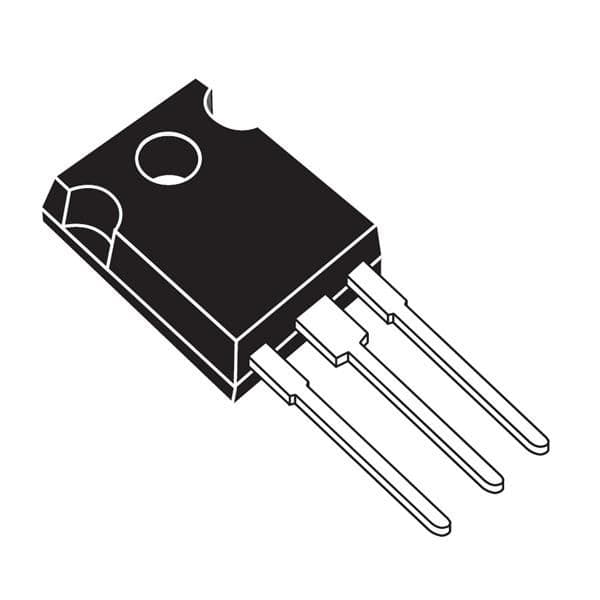

Product Images
