Stmicroelectronics
STW43NM50N
37A, 500V, 0.085ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247AC, ROHS COMPLIANT, TO-247, 3 PIN
PackageTO-247-3
MountingThrough Hole
PolarityN-CHANNEL
Power255W
Quick Jump:
Technical Specifications
Stmicroelectronics STW43NM50N technical specifications.
General
Package/Case
TO-247-3
Continuous Drain Current (ID)
37A
Drain to Source Breakdown Voltage
500V
Drain to Source Resistance
85mR
Drain to Source Voltage (Vdss)
500V
Drain-source On Resistance-Max
85mR
Fall Time
42ns
Gate to Source Voltage (Vgs)
25V
Input Capacitance
4.2nF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
255W
Mount
Through Hole
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
255W
Radiation Hardening
No
Rds On Max
85mR
RoHS Compliant
No
Series
MDmesh™ II
Turn-Off Delay Time
140ns
Turn-On Delay Time
30ns
Compliance
RoHS
Not CompliantNo
Datasheet
Stmicroelectronics STW43NM50N Datasheet
Download the complete datasheet for Stmicroelectronics STW43NM50N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

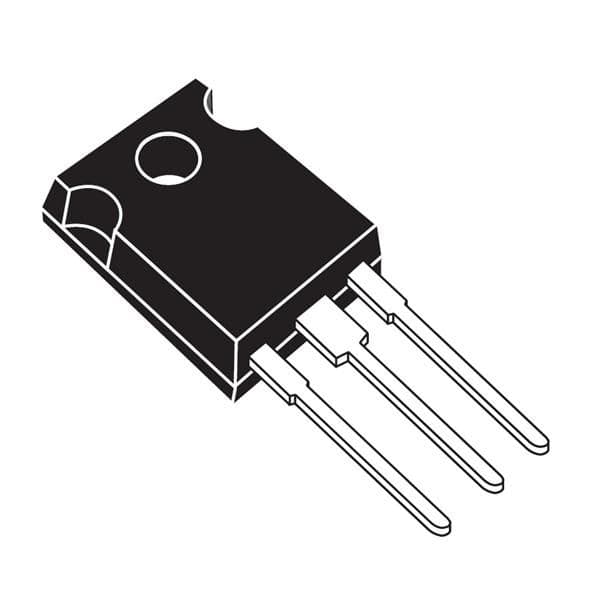

Product Images
