Stmicroelectronics
STW80NE06-10
80A, 60V, 0.01ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, TO-247, 3 PIN
PackageTO-247-3
Current Rating80A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STW80NE06-10 technical specifications.
General
| Package/Case | TO-247-3 |
| Continuous Drain Current (ID) | 80A |
| Current Rating | 80A |
| Drain to Source Breakdown Voltage | 60V |
| Drain to Source Resistance | 10mR |
| Drain to Source Voltage (Vdss) | 60V |
| Fall Time | 75ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 7.6nF |
| Lead Free | Contains Lead |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 250W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 250W |
| Rds On Max | 10mR |
| RoHS Compliant | No |
| Series | STripFET™ |
| DC Rated Voltage | 60V |
Compliance
| RoHS | Not Compliant |
Datasheet
Stmicroelectronics STW80NE06-10 Datasheet
Download the complete datasheet for Stmicroelectronics STW80NE06-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

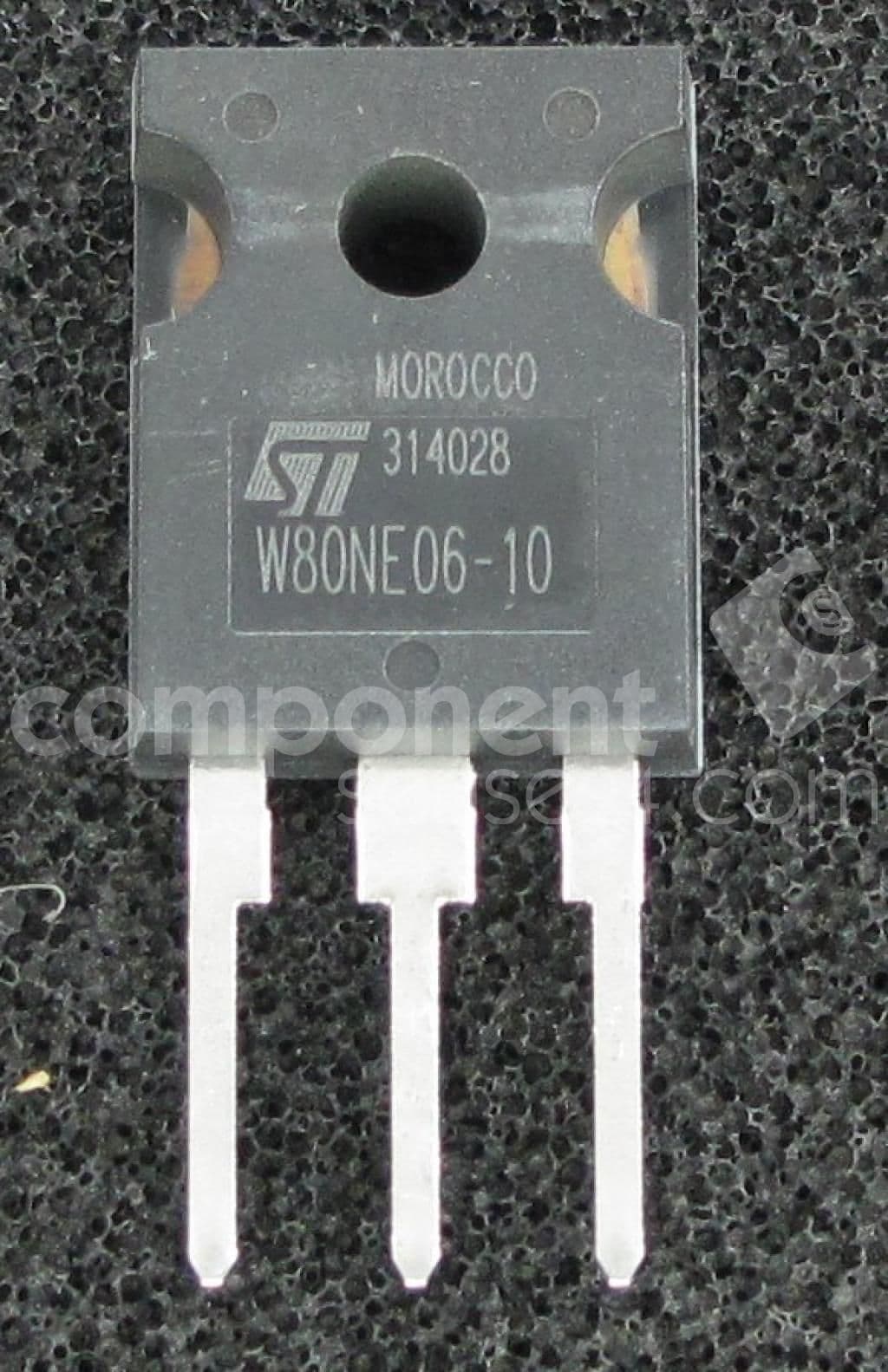

Product Images
