PackageDPAK
Current Rating4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics T435-600B technical specifications.
General
| Package/Case | DPAK |
| Current Rating | 4A |
| Height | 2.4mm |
| Hold Current | 35mA |
| Lead Free | Lead Free |
| Length | 6.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 30A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 4A |
| RoHS Compliant | Yes |
| Series | Snubberless™ |
| Termination | SMD/SMT |
| DC Rated Voltage | 600V |
| Weight | 0.009185oz |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics T435-600B Datasheet
Download the complete datasheet for Stmicroelectronics T435-600B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

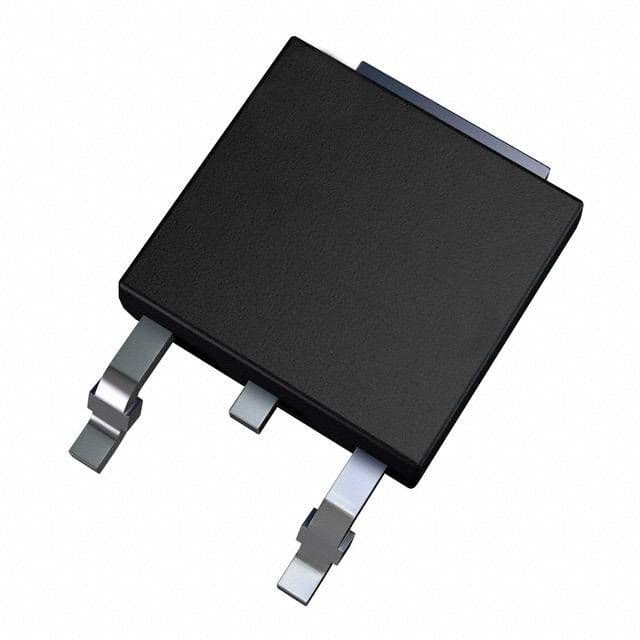

Product Images
