18W, 1-channel audio amplifier IC featuring a 4 Ohm load impedance and 80dB voltage gain. This Pentawatt-5 package component offers a dual supply voltage range from 6V to 18V (max 22V) and a maximum output current of 3.5A. With a 100kHz bandwidth and 20W power dissipation, it operates across a wide temperature range of -40°C to 150°C. Through-hole mounting and RoHS compliance are standard.
Current80mA
MountingThrough Hole
Power18W
Quick Jump:
Technical Specifications
Stmicroelectronics TDA2030AV technical specifications.
General
Bandwidth
100kHz
Dual Supply Voltage
18V
Gain
80dB
Gain Bandwidth Product
100kHz
Height
9.2mm
Input Bias Current
2uA
Input Offset Voltage (Vos)
20mV
Lead Free
Lead Free
Length
10.4mm
Load Impedance
4R
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
6V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
3.5A
Max Output Power
18W
Max Power Dissipation
20W
Max Supply Voltage
22V
Mount
Through Hole
Number of Channels
1
Output Current
3.5A
Output Power
18W
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
20W
Power Supply Rejection Ratio (PSRR)
54dB
Quiescent Current
80mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
80mA
Supply Type
Dual
Voltage Gain
80dB
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TDA2030AV Datasheet
Download the complete datasheet for Stmicroelectronics TDA2030AV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

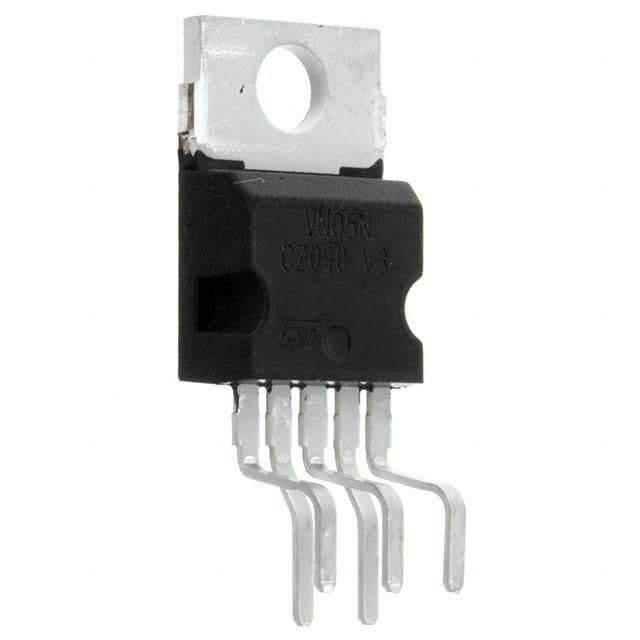

Product Images
