Stmicroelectronics
TDA7561
Audio Amp Speaker 4-CH Stereo 60W Class-AB Automotive 25-Pin FLEXIWATT(Vertical) Tube
MountingThrough Hole
Power60W
Quick Jump:
Technical Specifications
Stmicroelectronics TDA7561 technical specifications.
General
Features
I²C
Gain
26dB
Input Offset Voltage (Vos)
100mV
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Output Power
60W
Max Power Dissipation
85W
Max Supply Voltage
18V
Min Supply Voltage
8V
Mount
Through Hole
Operating Supply Voltage
15V
Output Power
60W
Output Voltage
100mV
Package Quantity
17
Packaging
Rail/Tube
Power Dissipation
85W
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
150mA
Radiation Hardening
No
RoHS Compliant
Yes
Supply Type
Single
Voltage Gain
26dB
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TDA7561 Datasheet
Download the complete datasheet for Stmicroelectronics TDA7561 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

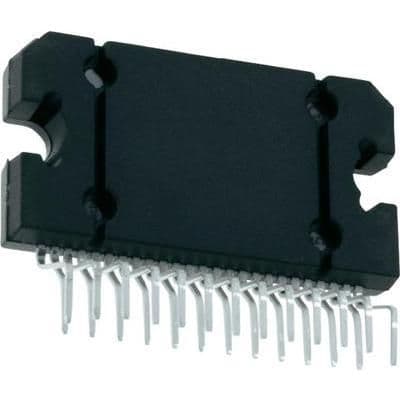

Product Images
