Stmicroelectronics
TDA7565
Intelligent high efficiency (class SB) quad BTL ouput with full I<sup>2</sup>C diagnostics, built in step up and mute input
MountingThrough Hole
Power60W
Quick Jump:
Technical Specifications
Stmicroelectronics TDA7565 technical specifications.
General
Features
I²C
Gain
26dB
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Output Power
59W
Max Power Dissipation
80W
Max Supply Voltage
18V
Min Supply Voltage
8V
Mount
Through Hole
Operating Supply Voltage
15V
Output Power
60W
Package Quantity
17
Packaging
Rail/Tube
Power Dissipation
80W
Radiation Hardening
No
RoHS Compliant
Yes
Supply Type
Single
Voltage Gain
26dB
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TDA7565 Datasheet
Download the complete datasheet for Stmicroelectronics TDA7565 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

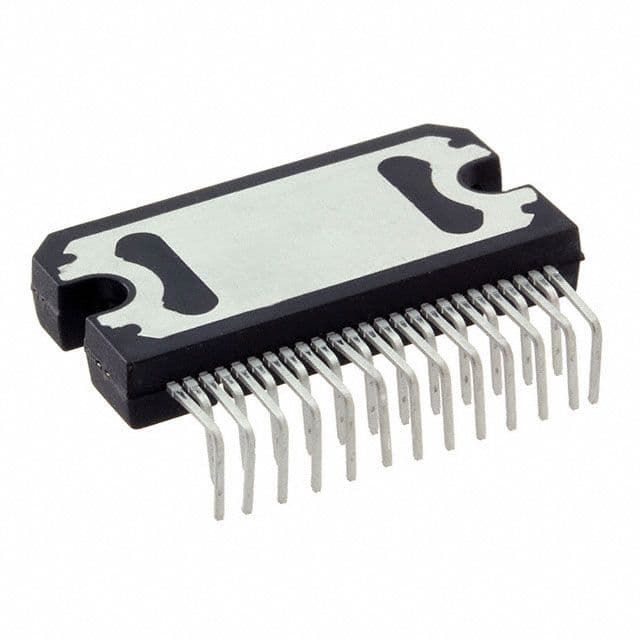

Product Images
