PNP Complementary Power Darlington Transistor in TO-220 package. Features a 100V Collector-Emitter Voltage (VCEO) and a 5A Max Collector Current. Offers a minimum DC current gain (hFE) of 1000 and a maximum power dissipation of 65W. Designed for through-hole mounting with a lead-free, RoHS-compliant construction. Operating temperature range from -65°C to 150°C.
PackageTO-220
Current Rating-5A
MountingThrough Hole
PolarityPNP
Quick Jump:
Technical Specifications
Stmicroelectronics TIP127 technical specifications.
General
| Package/Case | TO-220 |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 2V |
| Collector Emitter Voltage (VCEO) | 100V |
| Collector-emitter Voltage-Max | 4V |
| Current Rating | -5A |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 9.15mm |
| hFE Min | 1000 |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Collector Current | 5A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 65W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Polarity | PNP |
| Power Dissipation | 65W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | -100V |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TIP127 Datasheet
Download the complete datasheet for Stmicroelectronics TIP127 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

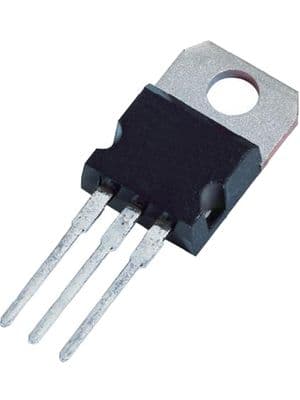

Product Images
