The TIP30A is a PNP bipolar junction transistor with a collector-emitter breakdown voltage of 60V and a maximum collector current of 1A. It is packaged in a TO-220-3 flange mount package and is suitable for through hole mounting. The transistor has a maximum power dissipation of 2W and an operating temperature range of -65°C to 150°C. It is compliant with RoHS and Reach SVHC regulations.
PackageTO-220-3
Current Rating1A
MountingThrough Hole
PolarityPNP
Quick Jump:
Technical Specifications
Stmicroelectronics TIP30A technical specifications.
General
| Package/Case | TO-220-3 |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector-emitter Voltage-Max | 700mV |
| Current Rating | 1A |
| Emitter Base Voltage (VEBO) | -5V |
| hFE Min | 15 |
| Lead Free | Contains Lead |
| Max Collector Current | 1A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 2W |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | PNP |
| Power Dissipation | 30W |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| DC Rated Voltage | 60V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TIP30A Datasheet
Download the complete datasheet for Stmicroelectronics TIP30A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

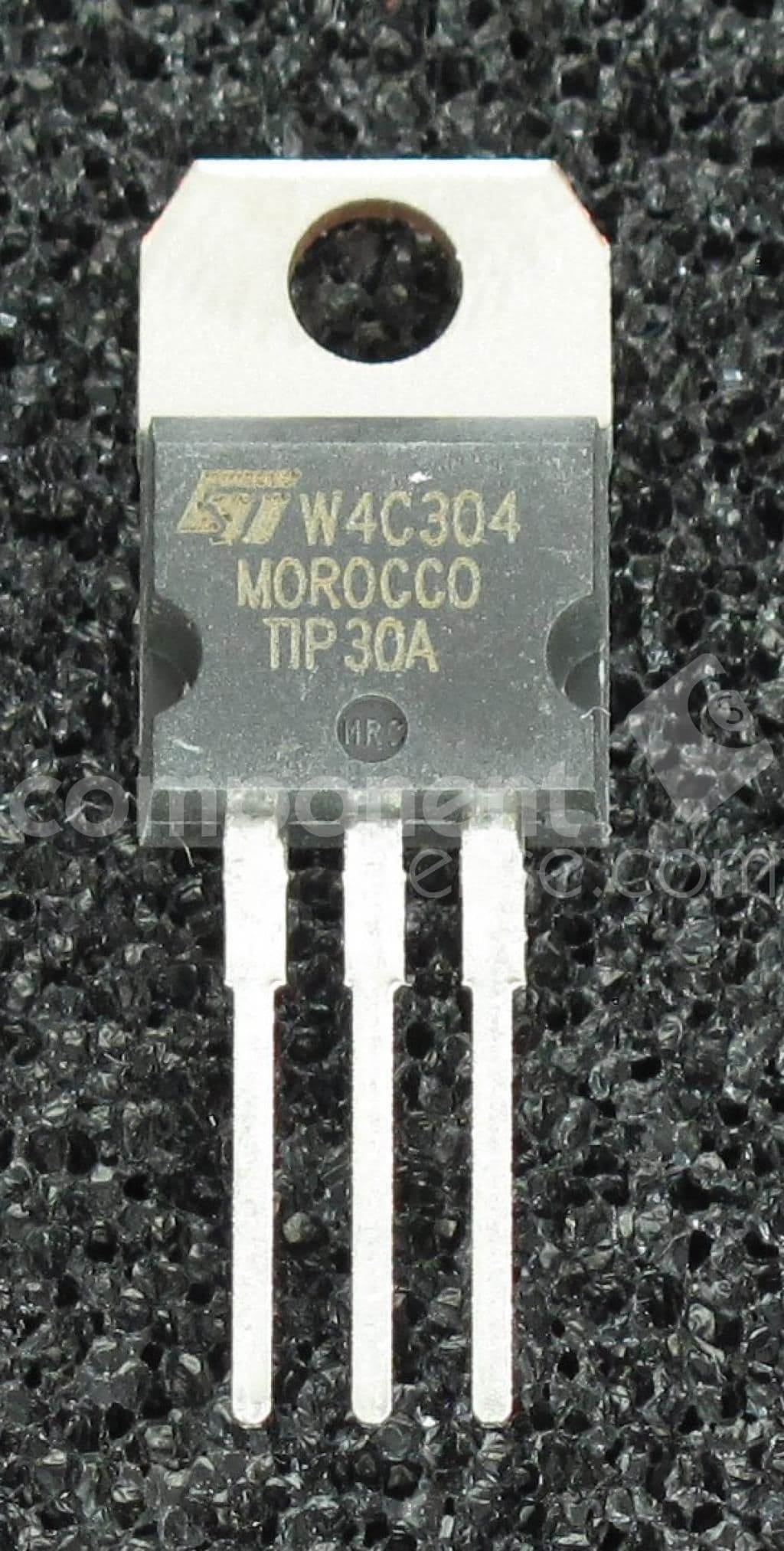

Product Images
