Dual JFET input operational amplifier featuring a 4MHz gain bandwidth product and 16V/µs slew rate. This surface mount IC offers a low input bias current of 400pA and a common mode rejection ratio of 70dB. It operates from a minimum dual supply voltage of 3V up to 18V, with a maximum dual supply voltage of 18V and a maximum supply voltage of 36V. The component is RoHS compliant and packaged in a TSSOP for tape and reel distribution.
PackageTSSOP
Current2.5mA
MountingSurface Mount
Power680mW
Quick Jump:
Technical Specifications
Stmicroelectronics TL082CPT technical specifications.
General
Bandwidth
4MHz
Package/Case
TSSOP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
4MHz
Input Bias Current
400pA
Input Offset Voltage (Vos)
10mV
Input Offset Voltage-Max
13mV
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
36V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.4mA
Operating Supply Voltage
18V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
4000
Packaging
Tape and Reel
Power Dissipation
680mW
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
16V/µs
Slew Rate-Nom
16V/µs
Supply Current
2.5mA
Technology
BIFET
Unity Gain Bandwidth Product
4MHz
Voltage Gain
106.02dB
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TL082CPT Datasheet
Download the complete datasheet for Stmicroelectronics TL082CPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

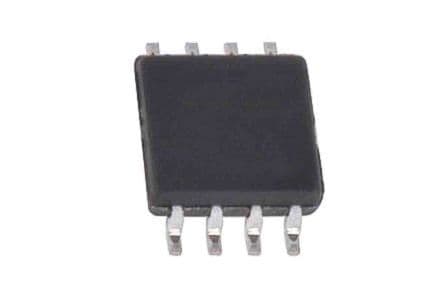

Product Images
