Dual JFET input operational amplifier featuring a 4MHz gain bandwidth product and 16V/µs slew rate. Offers low 20pA input bias current and 3mV input offset voltage. Operates from ±1.5V to ±9V dual supplies, with a maximum dual supply voltage of 18V. Surface mountable in a SOIC package, this RoHS compliant component provides 80dB common mode rejection ratio and 40mA output current per channel.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TL082IYDT technical specifications.
General
Package/Case
SOIC
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
4MHz
Input Bias Current
20pA
Input Offset Voltage (Vos)
3mV
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Current
2.5mA
Mount
Surface Mount
Nominal Supply Current
1.4mA
Number of Channels
2
Number of Circuits
2
Operating Supply Current
1.4mA
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
Q Automotive
Slew Rate
16V/µs
Voltage Gain
106.02dB
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TL082IYDT Datasheet
Download the complete datasheet for Stmicroelectronics TL082IYDT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

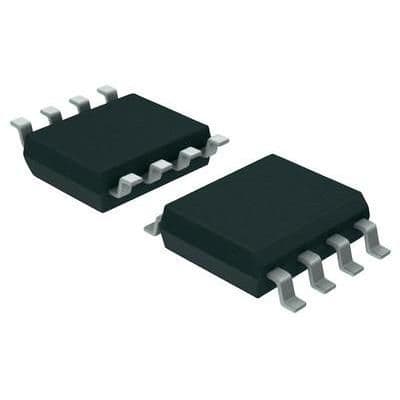

Product Images
