Adjustable micropower shunt voltage reference IC, featuring an output voltage range from 2.495V to 36V with a 1% tolerance. This single-channel power management component operates with a maximum input voltage of 37V and a maximum output current of 100mA, requiring a supply current of 1mA. Designed for through-hole mounting in a TO-92 package, it offers a cathode current of 600µA and operates within a temperature range of 0°C to 70°C. This RoHS compliant device is supplied in bulk packaging.
PackageTO-92
Current1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics TL431ACZ technical specifications.
General
Package/Case
TO-92
Cathode Current
600uA
Height
4.4mm
Lead Free
Lead Free
Length
4.7mm
Max Input Voltage
37V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
100mA
Max Output Voltage
36V
Min Output Voltage
2.495V
Mount
Through Hole
Number of Channels
1
Output Current
100mA
Output Type
Adjustable
Output Voltage
36V
Package Quantity
2500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Adjustable
Reference Voltage
36V
RoHS Compliant
Yes
Supply Current
1mA
Tolerance
1%
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TL431ACZ Datasheet
Download the complete datasheet for Stmicroelectronics TL431ACZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

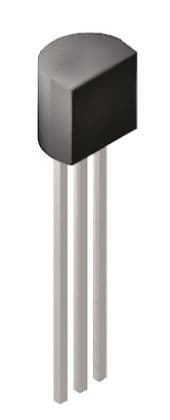

Product Images
