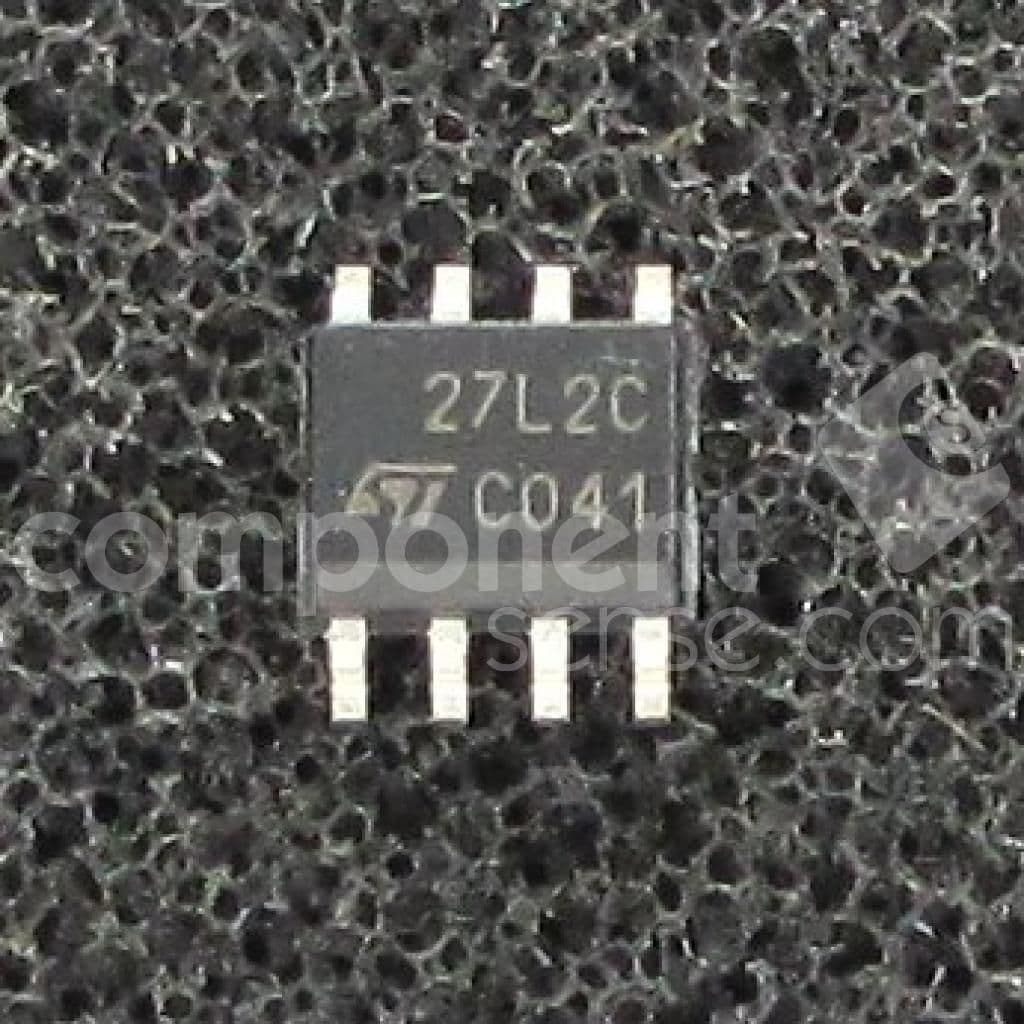

Dual channel, micropower CMOS operational amplifier featuring a 100kHz gain bandwidth product and 100dB voltage gain. This general-purpose op-amp operates from a 1.5V to 16V supply range, with a typical operating supply current of 10µA. It offers a 65dB common mode rejection ratio and a low input bias current of 1pA. Packaged in a surface-mount SO case, this lead-free component is suitable for applications requiring low power consumption and high voltage operation.
PackageSO
Current30uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TS27L2CD technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
100kHz
Package/Case
SO
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
100kHz
Height
1.25mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
10mV
Input Offset Voltage-Max
10mV
Lead Free
Lead Free
Length
5mm
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
16V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
10uA
Operating Supply Voltage
8V
Output Current
60mA
Output Current per Channel
45mA
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.04V/µs
Slew Rate-Nom
0.04V/µs
Supply Current
30uA
Technology
CMOS
Unity Gain Bandwidth Product
100kHz
Voltage Gain
100dB
Width
4mm
Compliance
RoHS
Compliant
