Four-channel, general-purpose operational amplifier utilizing CMOS technology. Features a 1MHz gain bandwidth product and 0.6V/µs slew rate. Operates with a minimum dual supply voltage of 1.5V and a maximum supply voltage of 16V, with a typical operating supply current of 150µA. Offers a 65dB common mode rejection ratio and 10mV input offset voltage. Packaged in a PDIP for through-hole mounting.
PackagePDIP
Current800uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics TS27M4CN technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Lead Free |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 150uA |
| Operating Supply Voltage | 8V |
| Output Current | 45mA |
| Output Current per Channel | 45mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.6V/µs |
| Supply Current | 800uA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 93.98dB |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TS27M4CN Datasheet
Download the complete datasheet for Stmicroelectronics TS27M4CN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

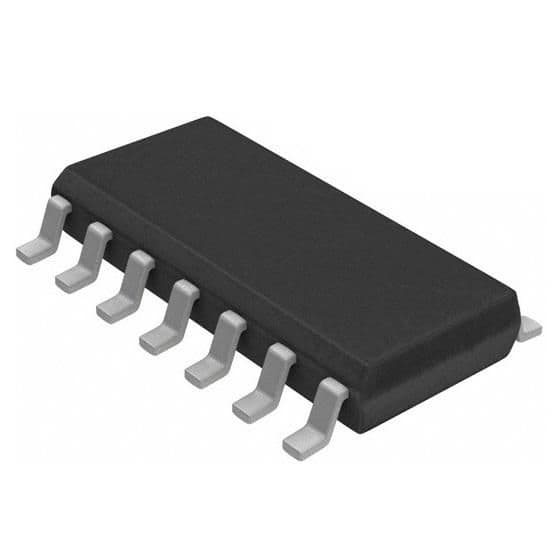

Product Images
