Single-channel, general-purpose operational amplifier in a SOT-23 package. Features 800kHz bandwidth, 0.4V/µs slew rate, and 100dB voltage gain. Operates from a 3V to 30V supply voltage with a typical operating supply current of 600µA. Offers 150nA input bias current and 2mV input offset voltage. This bipolar technology amplifier is surface mountable and RoHS compliant.
PackageSOT-23
Current800uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TS321AILT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
800kHz
Package/Case
SOT-23
Common Mode Rejection Ratio
65dB
Dual Supply Voltage
9V
Gain Bandwidth Product
800kHz
Height
1.3mm
Input Bias Current
150nA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
3mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
30V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
600uA
Operating Supply Voltage
15V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.4V/µs
Supply Current
800uA
Technology
BIPOLAR
Unity Gain Bandwidth Product
800kHz
Voltage Gain
100dB
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TS321AILT Datasheet
Download the complete datasheet for Stmicroelectronics TS321AILT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

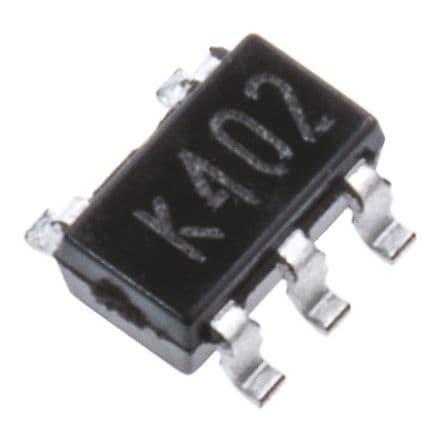

Product Images
