1.2W mono audio power amplifier, surface mount MSOP package. Features 15dB gain, 1.5MHz gain bandwidth product, and 8 Ohm load impedance. Operates from a 2.2V to 5.5V single supply, with a typical 5V operating voltage. Offers 1.2W maximum output power and 64dB power supply rejection ratio. Includes active low standby mode and 3.7mA quiescent current.
PackageMSOP
Current6mA
MountingSurface Mount
Power1.2W
Quick Jump:
Technical Specifications
Stmicroelectronics TS4990IST technical specifications.
General
| Package/Case | MSOP |
| Gain | 15dB |
| Gain Bandwidth Product | 1.5MHz |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Load Impedance | 8R |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 1.2W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.2V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Power | 1.2W |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 64dB |
| Quiescent Current | 3.7mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 6mA |
| Supply Type | Single |
| Termination | SMD/SMT |
| Unity Gain Bandwidth Product | 1.5MHz |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TS4990IST Datasheet
Download the complete datasheet for Stmicroelectronics TS4990IST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

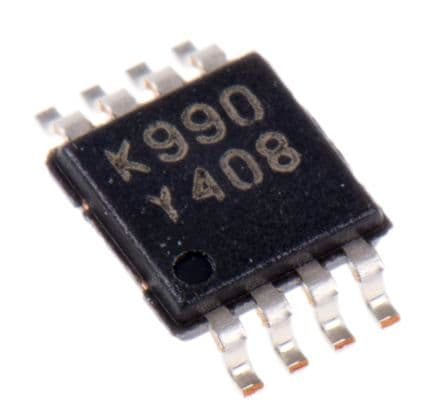

Product Images
