Stmicroelectronics
TSV851IYLT
Low-power (180uA), general-purpose 5V Bipolar Op-Amp, GBP=1.3MHz, single
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TSV851IYLT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
SOT-23-5
Common Mode Rejection Ratio
72dB
Gain Bandwidth Product
1.3MHz
Input Bias Current
27nA
Input Offset Voltage (Vos)
4mV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Circuits
1
Operating Supply Current
130uA
Output Current per Channel
70mA
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Slew Rate
0.7V/µs
Voltage Gain
110dB
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TSV851IYLT Datasheet
Download the complete datasheet for Stmicroelectronics TSV851IYLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

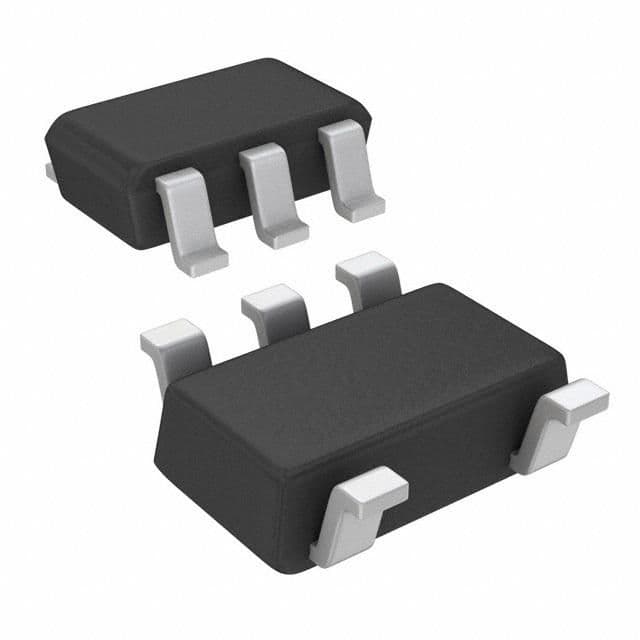

Product Images
