Quad operational amplifier featuring a 20MHz gain bandwidth product and rail-to-rail input/output capabilities. This general-purpose amplifier offers a 1.5mV input offset voltage and 10pA input bias current. Operating from 2.5V to 5.5V supply, it delivers 35mA output current per channel. The surface mount TSSOP package is lead-free and RoHS compliant, suitable for operation between -40°C and 125°C.
PackageTSSOP
Current4.4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TSV994AIPT technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | TSSOP |
| Common Mode Rejection Ratio | 62dB |
| Gain Bandwidth Product | 20MHz |
| Height | 1mm |
| Input Bias Current | 10pA |
| Input Offset Voltage (Vos) | 1.5mV |
| Input Offset Voltage-Max | 1.5mV |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 820uA |
| Output Current | 35mA |
| Output Current per Channel | 35mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Slew Rate | 10V/µs |
| Slew Rate-Nom | 10V/µs |
| Supply Current | 4.4mA |
| Technology | BICMOS |
| Unity Gain Bandwidth Product | 20MHz |
| Voltage Gain | 91dB |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TSV994AIPT Datasheet
Download the complete datasheet for Stmicroelectronics TSV994AIPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

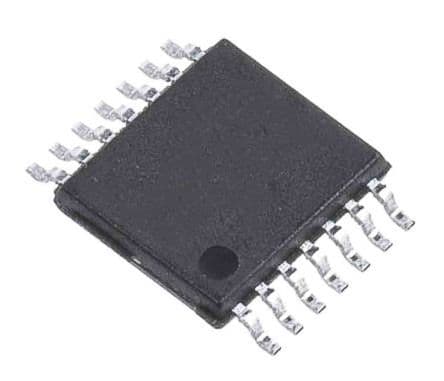

Product Images
