Quad operational amplifier featuring rail-to-rail input and output capabilities. This general-purpose amplifier offers a 20MHz bandwidth and a 10V/µs slew rate. Designed for surface mounting, it operates from a 2.5V to 5.5V supply range and boasts a low input bias current of 10pA. The component is housed in a 1mm high TSSOP package, suitable for a wide operating temperature range of -40°C to 125°C.
PackageTSSOP
Current4.4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TSV994IPT technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 20MHz |
| Package/Case | TSSOP |
| Common Mode Rejection Ratio | 62dB |
| Gain Bandwidth Product | 20MHz |
| Height | 1mm |
| Input Bias Current | 10pA |
| Input Offset Voltage (Vos) | 4.5mV |
| Input Offset Voltage-Max | 4.5mV |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 35mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 820uA |
| Output Current | 35mA |
| Output Current per Channel | 35mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 10V/µs |
| Slew Rate-Nom | 10V/µs |
| Supply Current | 4.4mA |
| Technology | BICMOS |
| Unity Gain Bandwidth Product | 20MHz |
| Voltage Gain | 91dB |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TSV994IPT Datasheet
Download the complete datasheet for Stmicroelectronics TSV994IPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

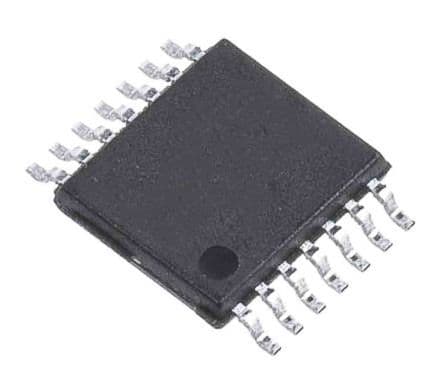

Product Images
