General purpose operational amplifier featuring a 1MHz gain bandwidth product and 0.5V/µs slew rate. This single-channel, bipolar IC offers a wide operating supply voltage range from 2.5V to 40V, with a typical dual supply voltage of 20V. It boasts a 1GHz bandwidth, 70dB common mode rejection ratio, and 106.02dB voltage gain. The surface mountable SO package, measuring 5mm x 4mm x 1.25mm, is RoHS compliant and suitable for operation between 0°C and 70°C.
PackageSO
Current2.8mA
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Stmicroelectronics UA741CD technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1GHz |
| Package/Case | SO |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 1MHz |
| Height | 1.25mm |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 5mV |
| Input Offset Voltage-Max | 5mV |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Dual Supply Voltage | 22V |
| Min Dual Supply Voltage | 2.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 40V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 1.7mA |
| Operating Supply Voltage | 20V |
| Output Current | 25mA |
| Output Current per Channel | 25mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Dissipation | 500mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.5V/µs |
| Slew Rate-Nom | 0.5V/µs |
| Supply Current | 2.8mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 106.02dB |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics UA741CD Datasheet
Download the complete datasheet for Stmicroelectronics UA741CD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

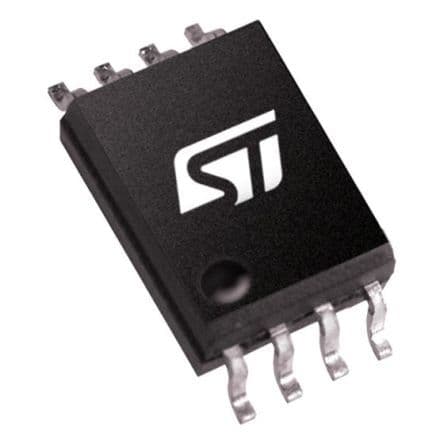

Product Images
