Quad Darlington switch featuring NPN polarity, designed for high-current applications with a continuous collector current of 1.5A and a maximum output current of 1.75A. This through-hole component offers a collector-emitter breakdown voltage of 50V and a maximum output voltage of 50V, with a low collector-emitter saturation voltage of 1.4V. Operating within a temperature range of -20°C to 85°C, it is housed in a PDIP package and is RoHS compliant.
PackagePDIP
Current Rating1.5A
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
Stmicroelectronics ULN2064B technical specifications.
General
Package/Case
PDIP
Collector Emitter Breakdown Voltage
50V
Collector Emitter Saturation Voltage
1.4V
Collector Emitter Voltage (VCEO)
50V
Collector-emitter Voltage-Max
1.4V
Continuous Collector Current
1.75A
Current Rating
1.5A
Height
4.59mm
Lead Free
Lead Free
Length
20mm
Max Collector Current
1.75A
Max Input Voltage
15V
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Output Voltage
50V
Max Power Dissipation
1W
Mount
Through Hole
Number of Elements
4
Output Current
1.75A
Output Voltage
50V
Package Quantity
1000
Packaging
Rail/Tube
Polarity
NPN
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
50V
Weight
0.057419oz
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ULN2064B Datasheet
Download the complete datasheet for Stmicroelectronics ULN2064B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

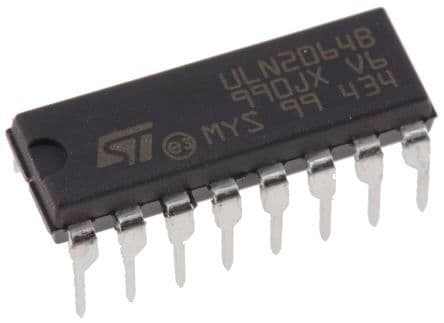

Product Images
