High voltage DC/DC controller and regulator for energy-saving applications. Features a flyback topology with a maximum output power of 8W and a single output. Operates from 85V to 265V AC input, with a maximum duty cycle of 80%. Includes over-temperature fault protection and is RoHS compliant. Packaged in a 1.5mm height, 5mm length, 4mm width SOP for surface mounting.
PackageSOP
Current20mA
MountingSurface Mount
Power8W
Quick Jump:
Technical Specifications
Stmicroelectronics VIPER06HS technical specifications.
General
Package/Case
SOP
Duty Cycle
70%
Fault Protection
Over Temperature
Height
1.5mm
Lead Free
Lead Free
Length
5mm
Max Duty Cycle
80%
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
8W
Max Supply Voltage
23.5V
Min Supply Voltage
11.5V
Mount
Surface Mount
Number of Outputs
1
Output Power
8W
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
VIPer™ plus
Supply Current
20mA
Topology
Flyback
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics VIPER06HS Datasheet
Download the complete datasheet for Stmicroelectronics VIPER06HS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

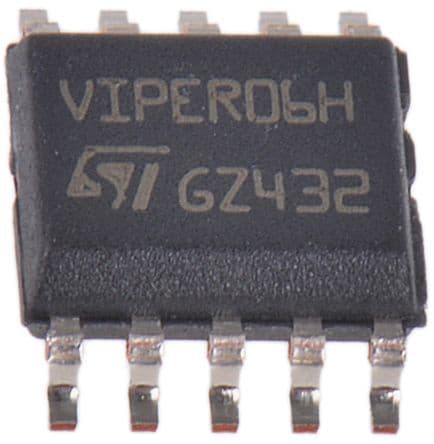

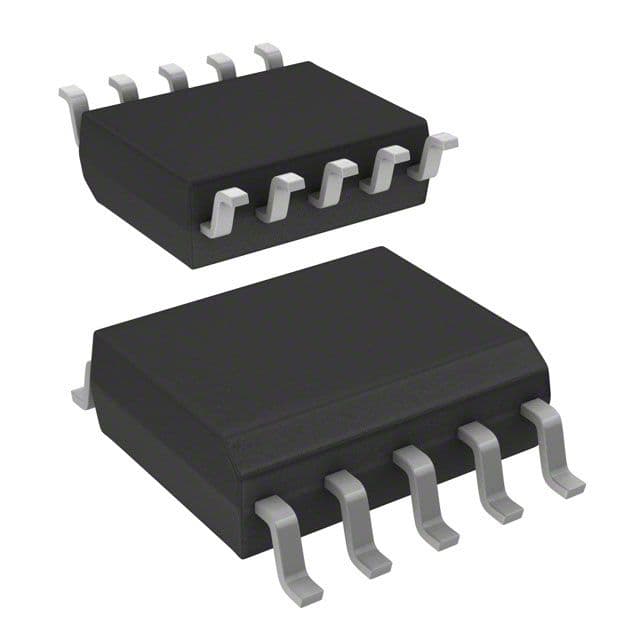

Product Images
