AC to DC switching converter, off-line switcher operating at 66kHz. Features include a maximum output voltage of 800V and a maximum output power of 30mW. Input voltage range is 85V to 265V AC, with a maximum duty cycle of 80%. This surface mount component offers over-temperature fault protection and operates within a temperature range of -40°C to 150°C. The device is RoHS compliant and packaged in a 10-pin SOP.
PackageSOP
MountingSurface Mount
Power30mW
Quick Jump:
Technical Specifications
Stmicroelectronics VIPER06LSTR technical specifications.
General
Package/Case
SOP
Duty Cycle
70%
Fault Protection
Over Temperature
Lead Free
Lead Free
Max Duty Cycle
80%
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
8W
Max Supply Voltage
23.5V
Min Supply Voltage
11.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Current
1.45mA
Output Power
30mW
Output Voltage
800V
Package Quantity
2500
Packaging
Cut Tape
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
VIPer™ plus
Topology
Flyback
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics VIPER06LSTR Datasheet
Download the complete datasheet for Stmicroelectronics VIPER06LSTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

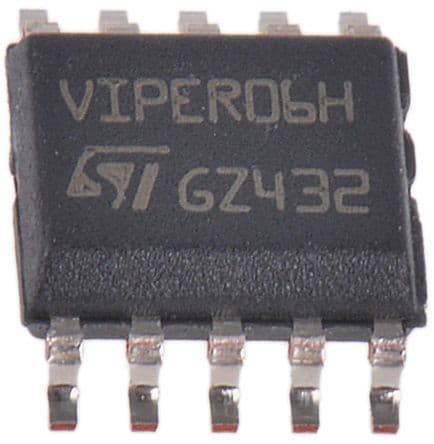

Product Images
