High voltage DC/DC controller and regulator for energy-saving power conversion. Features a 6W output power capability with direct feedback, operating from 85V to 265V AC input. Supports buck-boost and flyback topologies with a maximum output voltage of 800V and 420mA output current. Housed in a through-hole PDIP package, this RoHS compliant component offers a wide operating temperature range from -40°C to 150°C.
Frequency60kHz
PackagePDIP
MountingThrough Hole
Power12W
Quick Jump:
Technical Specifications
Stmicroelectronics VIPER16LN technical specifications.
General
Package/Case
PDIP
Height
3.3mm
Lead Free
Lead Free
Length
9.27mm
Max Duty Cycle
80%
Max Frequency
60kHz
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
10W
Max Supply Current
1.5mA
Max Supply Voltage
23.5V
Min Supply Voltage
11.5V
Mount
Through Hole
Number of Outputs
1
Operating Supply Current
1.5mA
Output Current
420mA
Output Power
12W
Output Voltage
800V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
VIPer™ plus
Topology
Buck-Boost, Flyback
Weight
0.030018oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics VIPER16LN Datasheet
Download the complete datasheet for Stmicroelectronics VIPER16LN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

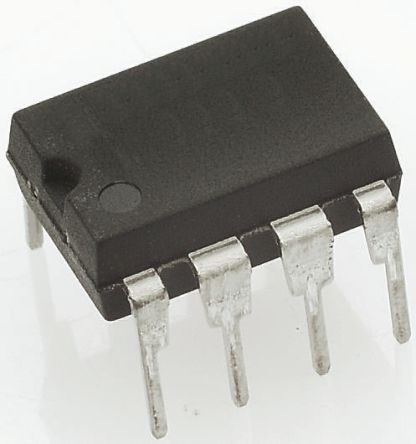

Product Images
