Flyback AC/DC switching converter IC operating at up to 127kHz with a maximum duty cycle of 80%. Features include 10W output power, 420mA output current, and 800V output voltage. Designed for isolated operation with a 7-pin PDIP through-hole package, it accepts AC input voltages from 85V to 265V. Integrated fault protection covers over-voltage and over-temperature conditions. Operating temperature range is -40°C to 150°C.
Frequency127kHz
PackageDIP
MountingThrough Hole
Power10W
Quick Jump:
Technical Specifications
Stmicroelectronics VIPER17HN technical specifications.
General
Package/Case
DIP
Duty Cycle
70%
Fault Protection
Over Voltage, Over Temperature
Height
3.3mm
Isolation
Isolated
Lead Free
Lead Free
Length
9.27mm
Max Duty Cycle
80%
Max Frequency
127kHz
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
10W
Max Supply Current
1.8mA
Max Supply Voltage
23.5V
Min Supply Voltage
8.5V
Mount
Through Hole
Number of Outputs
1
Operating Supply Current
1.8mA
Output Current
420mA
Output Power
10W
Output Voltage
800V
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
VIPer™ plus
Topology
Flyback
Weight
0.030018oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics VIPER17HN Datasheet
Download the complete datasheet for Stmicroelectronics VIPER17HN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

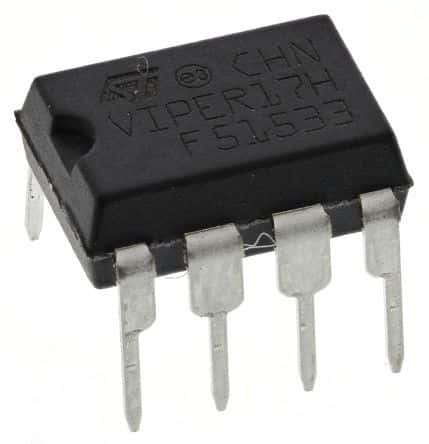

Product Images
