Stmicroelectronics
VND5N07-1
5A BUF OR INV BASED PRPHL DRVR, PSIP3, ROHS COMPLIANT, IPAK, TO-251, 3 PIN
PackageTO-251-3
Current250uA
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics VND5N07-1 technical specifications.
General
Package/Case
TO-251-3
Continuous Drain Current (ID)
5A
Drain to Source Breakdown Voltage
70V
Drain to Source Resistance
200mR
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Power Dissipation
60W
Mount
Through Hole
Number of Outputs
1
On-State Resistance
200mR
Output Current
5A
Package Quantity
75
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
60W
Radiation Hardening
No
RoHS Compliant
No
Series
OMNIFET II™
Supply Current
250uA
Compliance
RoHS
Not CompliantNo
Datasheet
Stmicroelectronics VND5N07-1 Datasheet
Download the complete datasheet for Stmicroelectronics VND5N07-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

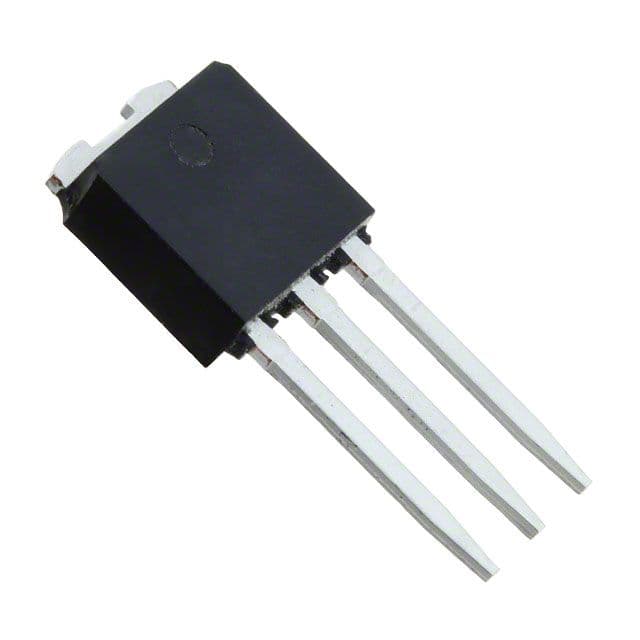

Product Images
