PackageTO-251-3
Current100uA
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics VND7NV04-1 technical specifications.
General
Package/Case
TO-251-3
Continuous Drain Current (ID)
17A
Drain to Source Breakdown Voltage
40V
Drain to Source Resistance
60mR
Drain to Source Voltage (Vdss)
40V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
9A
Max Power Dissipation
60W
Max Supply Current
100uA
Mount
Through Hole
Number of Outputs
1
On-State Resistance
60mR
Output Current
6A
Package Quantity
75
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
60W
Radiation Hardening
No
RoHS Compliant
No
Series
OMNIFET II™, VIPower™
Supply Current
100uA
Weight
0.139332oz
Compliance
RoHS
Not CompliantNo
Datasheet
Stmicroelectronics VND7NV04-1 Datasheet
Download the complete datasheet for Stmicroelectronics VND7NV04-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

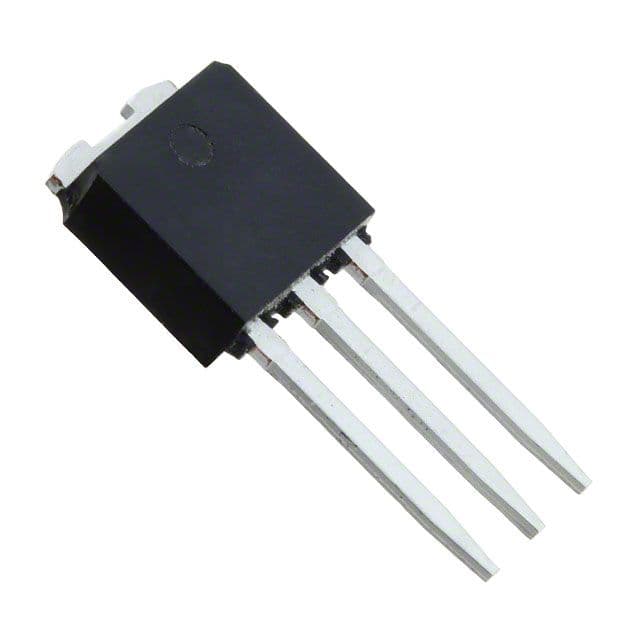

Product Images
