Stmicroelectronics
VNQ5027AKTR-E
Quad channel high side driver with analog current sense for automotive applications
Current14mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics VNQ5027AKTR-E technical specifications.
General
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
42A
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
4
Number of Outputs
4
On-State Resistance
27mR
Operating Supply Voltage
13V
Output Current
42A
Output Current per Channel
29A
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
VIPower™
Supply Current
14mA
Turn-Off Delay Time
40us
Turn-On Delay Time
40us
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics VNQ5027AKTR-E Datasheet
Download the complete datasheet for Stmicroelectronics VNQ5027AKTR-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

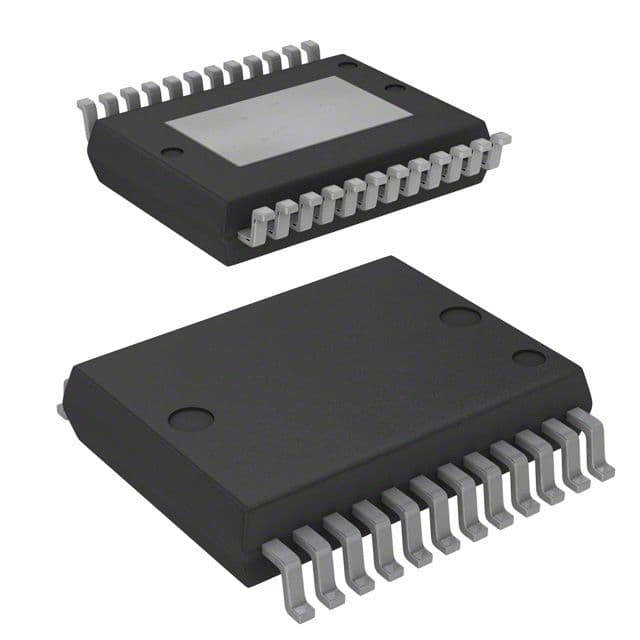

Product Images
