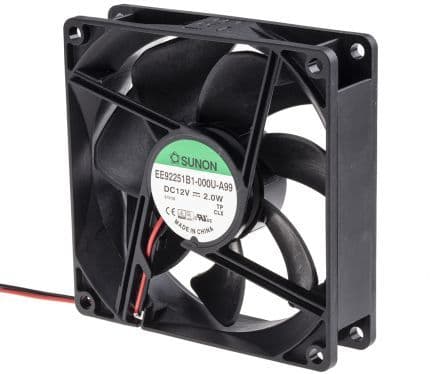

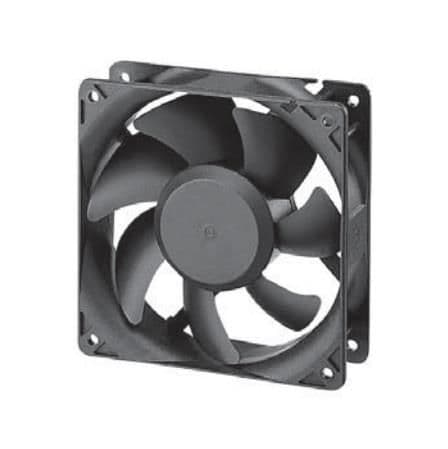

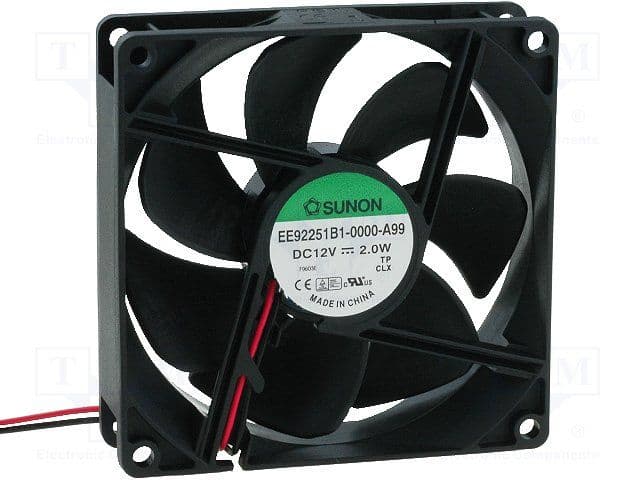

High-performance axial fan, 92mm x 92mm x 25mm, operating at 12VDC. Features a robust ball bearing system for extended 50,000-hour lifespan and delivers 51.5 CFM airflow at 3000 RPM. Constructed from UL94 V-0 rated plastic, this fan operates within a temperature range of 14°C to 158°C, with a noise level of 34 dBA. Approved by UL, CE, and TUV, it is lead-free and designed for efficient thermal management.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Sunon EE92251B1-000U-A99 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Sunon EE92251B1-000U-A99 technical specifications.
| Airflow | 51.5CFM |
| Approvals | UL, CE, TUV |
| Bearing Type | Ball |
| Package/Case | Axial |
| Current Rating | 165mA |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Life (Hours) | 50000Hour |
| Material | Plastic |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | 14°C |
| Max Power Dissipation | 1.98W |
| Noise | 34dBA |
| Noise (dB) | 34dB |
| Noise Level | 34 dBA |
| Package Quantity | 30 |
| Power Consumption | 2W |
| RPM | 3000RPM |
| Series | DR MagLev® |
| Termination | 2 Wire Leads |
| Weight | 0.207lb |
| Width | 25mm |
| RoHS | Compliant |
Download the complete datasheet for Sunon EE92251B1-000U-A99 to view detailed technical specifications.
