3-contact, 6.35mm male plug for cable mounting, featuring nickel-plated copper alloy contacts and a durable zinc die-cast metal body. This right-angle power connector offers solder termination and a voltage rating of 500V, operating within a temperature range of -20°C to 65°C. Designed for free-hanging applications, it is RoHS compliant and constructed from brass.
PackageMetal
Voltage Rating500V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Switchcraft 236 technical specifications.
General
Body Color
Silver
Body Material
ZINC DIE CAST, Metal
Package/Case
Metal
Color
Silver
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Nickel
Depth
12.7mm
Gender
Male
Lead Free
Lead Free
Length
46.4mm
Material
Brass
Max Operating Temperature
65°C
Min Operating Temperature
-20°C
Mount
Free Hanging, Cable
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Pin Diameter
6.35mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
236
Shielding
Unshielded
Termination
Solder
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
Switchcraft 236 Datasheet
Download the complete datasheet for Switchcraft 236 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

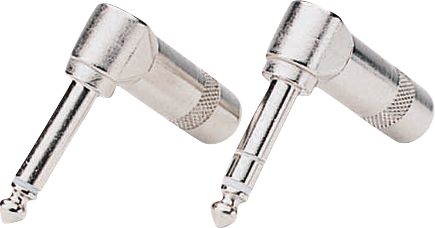

Product Images
