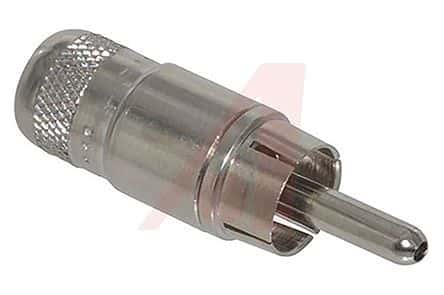

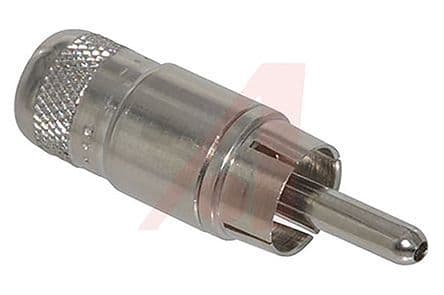

Shielded, straight, male RCA connector for cable mounting. Features a copper alloy body with nickel-plated copper alloy contacts, supporting solder termination. Rated for 6A current and 250V AC/200V DC voltage, operating between -40°C and 85°C. Designed for a 0.285-inch wire/cable diameter.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Switchcraft 3502 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Color | Silver |
| Body Material | Copper Alloy, Metal |
| Package/Case | Metal |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Nickel |
| Current Rating | 6A |
| Diameter | 0.203inch |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 0.688inch |
| Max Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 140.25kV |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 3502A |
| Shielding | Shielded |
| Size | 0.125inch |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 150V |
| DC Rated Voltage | 200V |
| Wire/Cable Diameter | 0.285inch |
| RoHS | Compliant |
