3-position, male, straight, free-hanging power connector with a 15A current rating and 125V AC voltage rating. Features a durable zinc metal body and shell with a nickel finish, copper alloy contacts with silver plating, and plastic insulation. Termination is via solder, and the component is RoHS compliant.
PackageMetal
Voltage Rating125V
Current Rating15A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Switchcraft AA3M technical specifications.
General
| Body Material | Metal, Zinc |
| Package/Case | Metal |
| Color | Silver |
| Contact Finish - Mating | SILVER |
| Contact Material | Copper Alloy, Brass |
| Contact Plating | Silver |
| Current Rating | 15A |
| Gender | Male |
| Insulation Material | Plastic |
| Lead Free | Lead Free |
| Length | 70.64mm |
| Max Current Rating | 15A |
| Max Voltage Rating (AC) | 125V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Q-G® AA |
| Shell Finish | Nickel |
| Shell Material | Zinc |
| Termination | Solder |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Switchcraft AA3M Datasheet
Download the complete datasheet for Switchcraft AA3M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

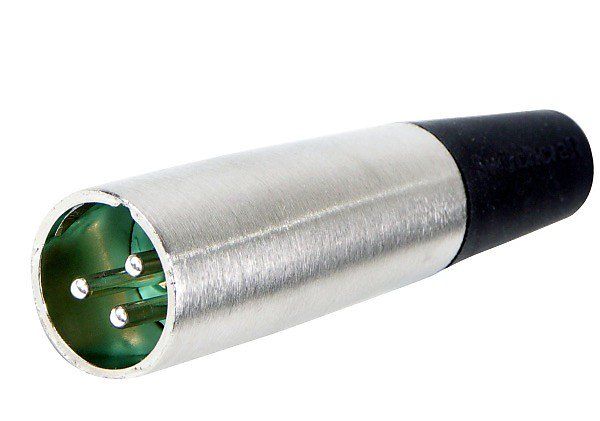

Product Images
