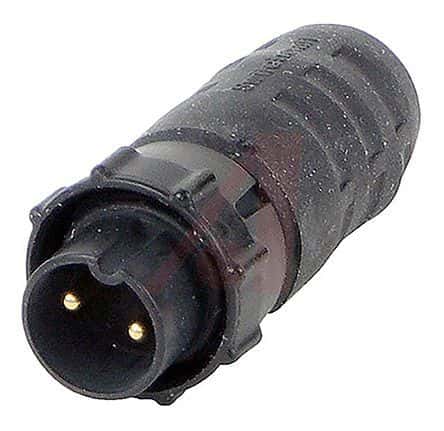

2-position, male, straight circular connector with solder termination. Features a black thermoplastic shell, copper alloy contacts with gold plating, and a 13A current rating. Operates within a -40°C to 65°C temperature range and boasts IP66, waterproof, water-resistant, dust-tight, and IP16 ratings. This sealed, free-hanging connector is UL94 V-0 flammability rated and RoHS compliant.
Voltage Rating600V
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Switchcraft EN3C2M16X technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 13A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Type | Sealed |
| Ratings | IP66, Waterproof, Water Resistant, Dust Tight, IP16 |
| RoHS Compliant | Yes |
| Series | EN3 |
| Shell Material | Thermoplastic |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Switchcraft EN3C2M16X Datasheet
Download the complete datasheet for Switchcraft EN3C2M16X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
