Three-position, female XLR connector with solder termination and through-hole mounting. Features a silver contact finish on copper alloy contacts, a nickel-plated zinc alloy shell, and is shielded for enhanced signal integrity. Rated for 15A current and 125V/133V voltage, operating between -55°C and 85°C. This UL94 V-0 rated component is lead-free and RoHS compliant.
Voltage Rating125V
Current Rating15A
MountingThrough Hole, Panel, Flanges
Quick Jump:
Technical Specifications
Switchcraft F3FSTF technical specifications.
General
| Color | Silver |
| Contact Finish - Mating | SILVER |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Current Rating | 15A |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Lead Free | Lead Free |
| Max Current Rating | 15A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Panel, Flanges |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Nickel |
| RoHS Compliant | Yes |
| Series | Q-G® F |
| Shell Finish | Nickel |
| Shell Material | ZINC ALLOY |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 133V |
Compliance
| RoHS | Compliant |
Datasheet
Switchcraft F3FSTF Datasheet
Download the complete datasheet for Switchcraft F3FSTF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

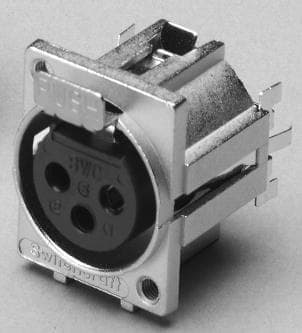

Product Images
