Right-angle, male, 3-contact circular DC power connector with a 2.5mm pin diameter. Features a black copper alloy body and silver-plated copper alloy contacts, rated for 5A and 30V DC. Designed for through-hole, panel, bulkhead, and front-side nut mounting, with a solder termination. Operates within a temperature range of -20°C to 65°C and offers IP68 ingress protection. This RoHS compliant component is supplied in bulk packaging.
Voltage Rating30V
Current Rating5A
MountingThrough Hole, Panel, Bulkhead, Front Side Nut
Quick Jump:
Technical Specifications
Switchcraft L712RAS technical specifications.
General
Body Color
Black
Body Material
Copper Alloy
Contact Material
Copper, Copper Alloy
Contact Plating
Silver
Current Rating
5A
Depth
26.3mm
Gender
Male
Height
17.018mm
Length
26.3mm
Max Current Rating
5A
Max Operating Temperature
65°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
30V
Mount
Through Hole, Panel, Bulkhead, Front Side Nut
Number of Contacts
3
Number of Ports
1
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pin Diameter
2.5mm
Ratings
IP68
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Unshielded
Termination
Solder
Voltage Rating
30V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Switchcraft L712RAS Datasheet
Download the complete datasheet for Switchcraft L712RAS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

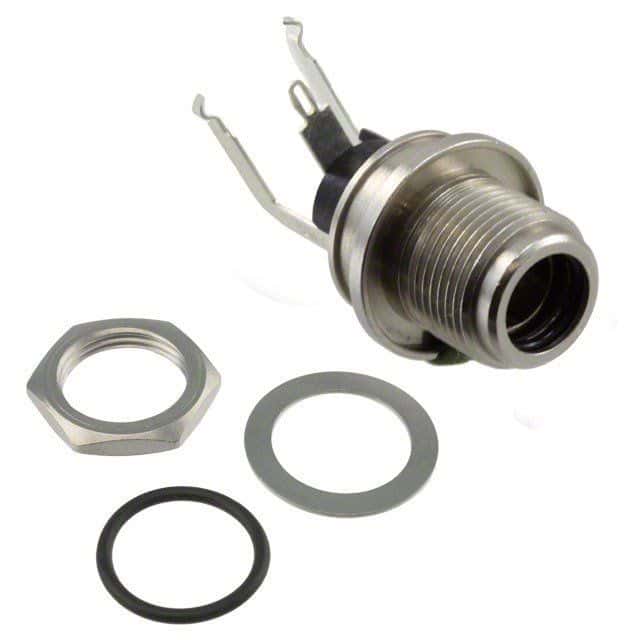

Product Images
