This circular DC power connector features a straight, male gender with a 2mm pin diameter and a 5A current rating. Designed for panel, bulkhead, and front-side nut mounting with through-hole termination, it supports up to 12V DC. The connector boasts a copper alloy contact material with silver plating, a black plastic and copper alloy body, and is RoHS compliant. It includes three contacts and is supplied in bulk packaging.
Voltage Rating12V
Current Rating5A
MountingPanel, Bulkhead, Front Side Nut, Through Hole
Quick Jump:
Technical Specifications
Switchcraft L722A technical specifications.
General
| Body Color | Black |
| Body Material | Copper Alloy, Plastic |
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Current Rating | 5A |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 23.3mm |
| Max Voltage Rating (AC) | 12V |
| Mount | Panel, Bulkhead, Front Side Nut, Through Hole |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pin Diameter | 2mm |
| Primary Type | POWER |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 12V |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Switchcraft L722A Datasheet
Download the complete datasheet for Switchcraft L722A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

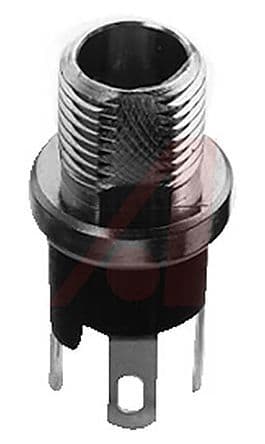

Product Images
