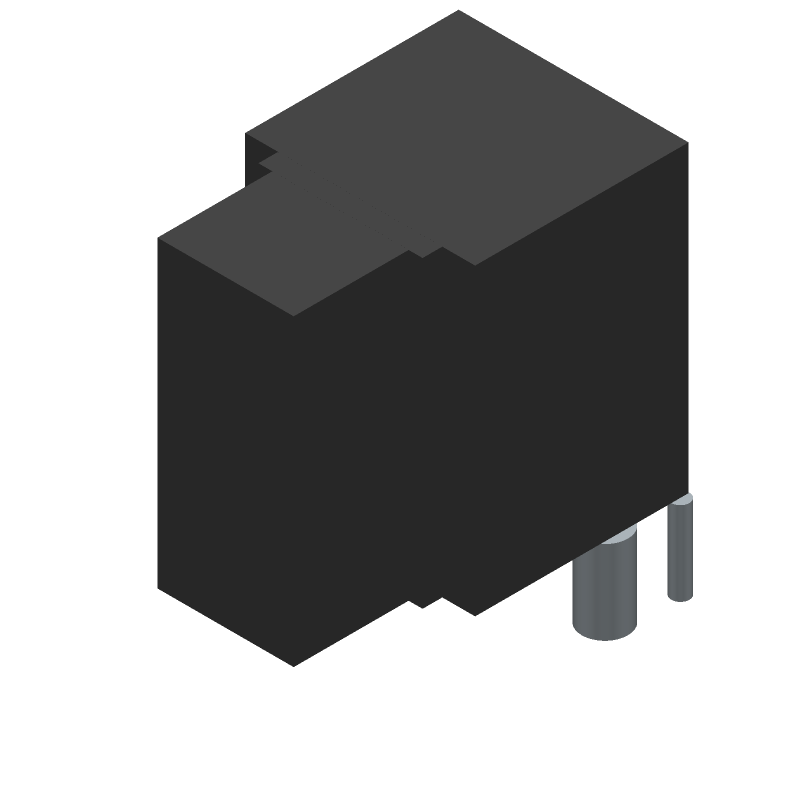

Right-angle, shielded audio/RCA jack featuring a single port and solid lead terminals. Constructed with a copper body and copper alloy contacts, plated with silver and tin for enhanced conductivity. Rated for 2A current and 34V (AC/DC), operating within a temperature range of -25°C to 80°C. This through-hole mount connector has a white body color and black housing, with a steel jacket for durability.
Voltage Rating34V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Switchcraft PJRAS1X1S02X technical specifications.
General
Body Color
White
Body Material
Copper
Color
White
Contact Material
Copper Alloy
Contact Plating
Silver, Tin
Current Rating
2A
Depth
21.2mm
Gender
Female
Housing Color
Black
Insulation Color
White
Jacket Material
Steel
Length
17mm
Max Current Rating
2A
Max Operating Temperature
80°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
34V
Max Voltage Rating (DC)
34V
Mount
Through Hole
Number of Ports
1
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Plating
Steel
RoHS Compliant
Yes
Series
PJR
Shielding
Shielded
Termination
Solder
Voltage Rating
34V
Compliance
RoHS
Compliant
Datasheet
Switchcraft PJRAS1X1S02X Datasheet
Download the complete datasheet for Switchcraft PJRAS1X1S02X to view detailed technical specifications.
