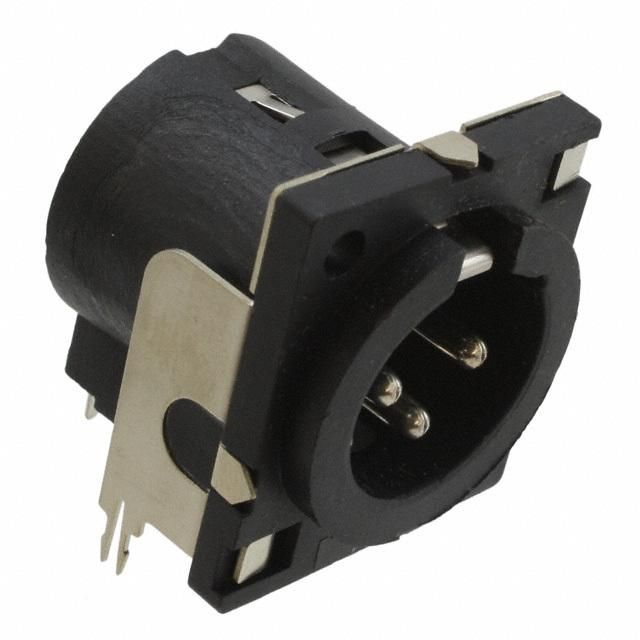

3-contact, right-angle circular connector with solder termination. Features a glass-filled polyethylene shell and copper alloy contacts with silver and tin plating for a 10A current rating and 125V voltage rating. Operates within a -34°C to 85°C temperature range and offers UL94 V-0 flammability. Designed for through-hole, panel, and flange mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Switchcraft PQG3MRA112 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Switchcraft PQG3MRA112 technical specifications.
| Color | Black |
| Contact Finish - Mating | Electro-Tin |
| Contact Material | Copper Alloy |
| Contact Plating | Silver, Tin |
| Current Rating | 10A |
| Depth | 27.1mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Material | Plastic |
| Lead Free | Lead Free |
| Length | 27mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -34°C |
| Mount | Through Hole, Panel, Flanges |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Orientation | Right Angle |
| Package Quantity | 25 |
| Packaging | Bulk |
| Primary Type | Sealed |
| RoHS Compliant | Yes |
| Series | Q-G® PQG |
| Shell Material | Glass |
| Termination | Solder |
| Voltage Rating | 125V |
| RoHS | Compliant |
