The BAV70 is a surface mount diode with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a maximum reverse voltage of 70V and a maximum reverse current of 2.5uA. The diode is packaged in a SOT-23-3 package and is lead free and RoHS compliant. It has a reverse recovery time of 6ns and a maximum surge current of 2A.
PackageSOT-23-3
Capacitance1.5pF
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Taiwan Semiconductor BAV70 technical specifications.
General
| Capacitance | 1.5pF |
| Package/Case | SOT-23-3 |
| Current Rating | 200mA |
| Forward Current | 200mA |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 70V |
| Max Reverse Current | 2.5uA |
| Max Reverse Leakage Current | 2.5uA |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Yes |
| Reverse Recovery Time | 6ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 70V |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor BAV70 Datasheet
Download the complete datasheet for Taiwan Semiconductor BAV70 to view detailed technical specifications.
No datasheet is available for this part.

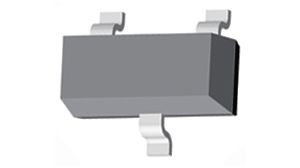

Product Images
