Capacitance180pF
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
Taiwan Semiconductor GBPC1510W technical specifications.
General
Capacitance
180pF
Current Rating
15A
Forward Current
15A
Height
11.23mm
Lead Free
Lead Free
Length
29mm
Max Forward Surge Current (Ifsm)
300A
Max Operating Temperature
150°C
Min Operating Temperature
-50°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
300A
Mount
Through Hole
Output Current
15A
Package Quantity
100
Packaging
Bulk
DC Rated Voltage
1kV
Width
29mm
Compliance
RoHS
Compliant
Datasheet
Taiwan Semiconductor GBPC1510W Datasheet
Download the complete datasheet for Taiwan Semiconductor GBPC1510W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

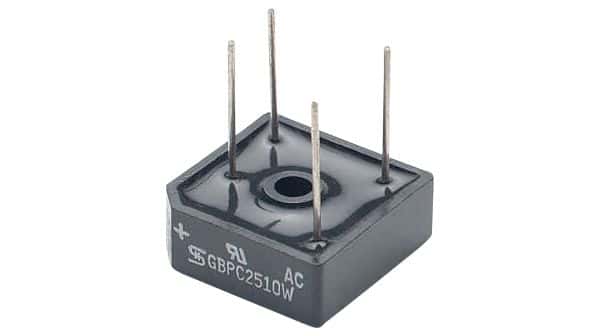

Product Images
