Surface mount chip antenna operating at 2.45GHz with 0dBi gain and 50 Ohm impedance. Features a compact 3.2mm x 1.6mm x 0.5mm SMD package with solder termination. Offers a VSWR of 2 and operates within a temperature range of -20°C to 80°C. Supplied in tape and reel packaging.
Frequency2.45GHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Taiyo Yuden AH316M245001-T technical specifications.
General
Frequency
2.45GHz
Height
0.5mm
Impedance
50R
Length
3.2mm
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Number of Bands
1
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Solder
VSWR
2
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Taiyo Yuden AH316M245001-T Datasheet
Download the complete datasheet for Taiyo Yuden AH316M245001-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

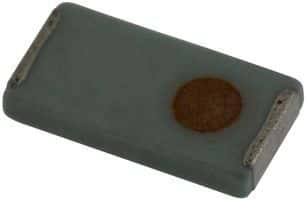

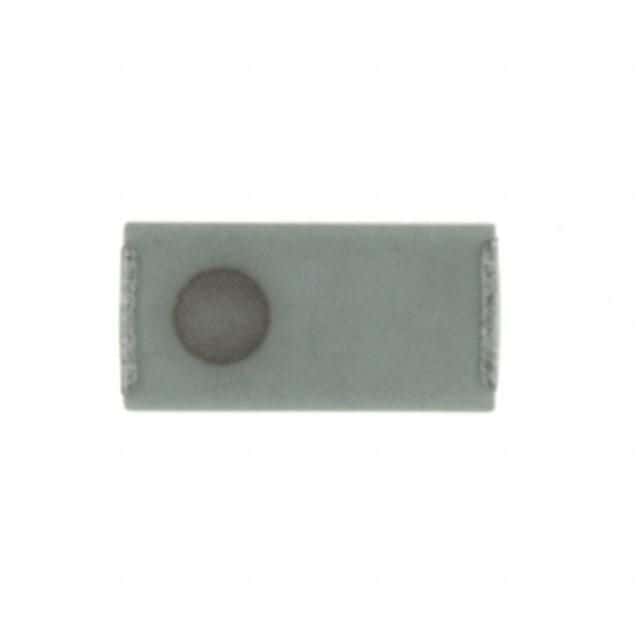

Product Images
