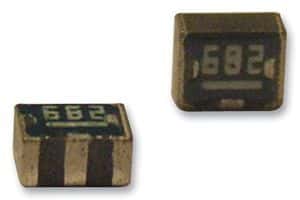

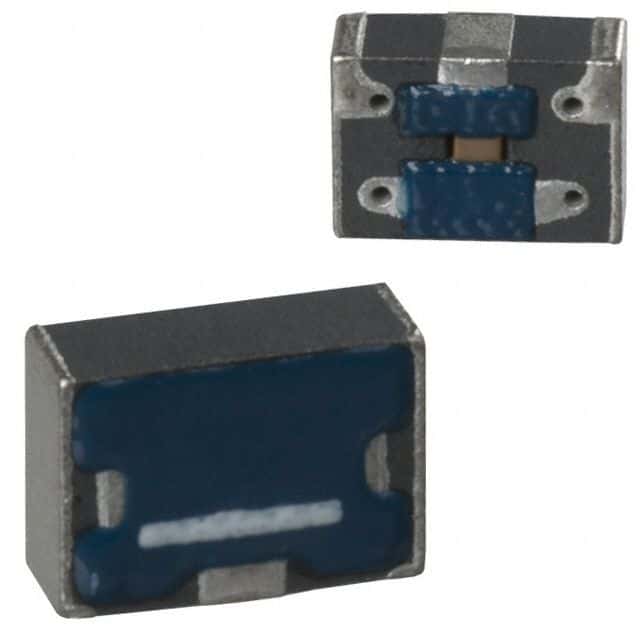

Board mount EMI/RFI filter featuring an LC circuit design for effective noise suppression. Delivers 25dB attenuation at 50MHz, handling up to 2A DC current and 50VDC. Constructed with a flat style, 1812 (4532 metric) SMD package, measuring 4.5mm L x 3.2mm W x 1.8mm H. Offers a maximum DC resistance of 60mR and operates within a temperature range of -40°C to 125°C. This RoHS compliant component is supplied in tape and reel packaging.
FrequencyN/A
Package1812
Current2A
Capacitance3.3nF
Quick Jump:
Technical Specifications
TDK ACH4518-332-TD01 technical specifications.
General
Attenuation Value
25dB
Capacitance
3.3nF
Case Code (Imperial)
1812
Case Code (Metric)
4532
Package/Case
1812
Circuit Type
Filter
Current
2A
Current Rating
2A
DC Resistance-Max
60mR
ESD Protection
No
Height
1.8mm
Lead Free
Lead Free
Length
4.5mm
Max Current Rating
2A
Max DC Current
2A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
50V
Mount
Surface Mount
Number of Channels
1
Operating Frequency
N/A
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ACH
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
50MHz
Voltage Rating
50V
DC Rated Voltage
50V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
TDK ACH4518-332-TD01 Datasheet
Download the complete datasheet for TDK ACH4518-332-TD01 to view detailed technical specifications.
