Board mount DC-DC regulated power supply module featuring a 3-channel boost topology. Delivers 12V output voltage per channel with a maximum output current of 100mA per channel, totaling 3.8W output power. Operates with an input voltage range of 10.8V to 13.2V DC and offers OVP protection. Module dimensions are 85mm length, 21.5mm width, and 5.5mm depth, with chassis, panel, and screw mounting options. Suitable for analog and PWM dimming applications, operating from -30°C to 85°C.
PackageModule
MountingChassis Mount, Panel, Screw
Power3.8W
Quick Jump:
Technical Specifications
TDK ALD-310012PJ125 technical specifications.
General
Package/Case
Module
Current - Output 1
150mA
Current - Output 2
150mA
Current - Output 3
150mA
Depth
5.5mm
Dimming
Analog, PWM
Features
OVP
Length
85mm
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Output Current
100mA
Max Power Dissipation
4W
Mount
Chassis Mount, Panel, Screw
Number of Channels
3
Number of Outputs
1
Output Current
100mA
Output Power
3.8W
Output Voltage
38V
RoHS Compliant
Yes
Series
ALD
Termination
Connector
Topology
Boost
Voltage - Output 1
12V
Voltage - Output 2
12V
Voltage - Output 3
12V
Weight
0.022lb
Width
21.5mm
Compliance
RoHS
Compliant
Datasheet
TDK ALD-310012PJ125 Datasheet
Download the complete datasheet for TDK ALD-310012PJ125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

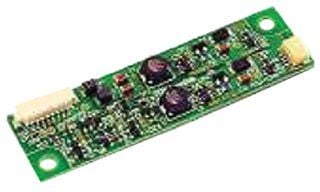

Product Images
