12 Watt LED power supply providing a constant 15V output at 800mA. Features include 82% efficiency, 3kV isolation voltage, and operating temperatures from -10°C to 60°C. This chassis and panel mount unit offers OVP and OCP protection, with UL, CSA, CE, IEC, and PSE approvals. Rated IP66, it utilizes wire lead termination.
MountingChassis Mount, Panel
Power12W
Quick Jump:
Technical Specifications
TDK ALV12-15-R80 technical specifications.
General
| Approvals | UL, CSA, CE, IEC, PSE |
| Current - Output 1 | 80mA |
| Depth | 21mm |
| Efficiency | 82% |
| Features | OVP, OCP |
| Height | 0.83inch |
| Isolation Voltage | 3kV |
| Length | 3.62inch |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 800mA |
| Max Output Power | 12W |
| Max Power Dissipation | 12W |
| Mount | Chassis Mount, Panel |
| Nominal Output Voltage | 15V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 800mA |
| Output Power | 12W |
| Output Voltage | 15V |
| Package Quantity | 20 |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Series | ALV12 |
| Termination | Wire Leads |
| Voltage - Output 1 | 15V |
| Weight | 0.185lb |
| Width | 34.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK ALV12-15-R80 Datasheet
Download the complete datasheet for TDK ALV12-15-R80 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

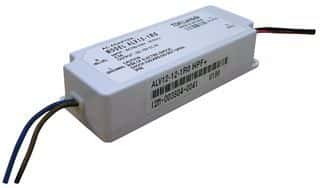

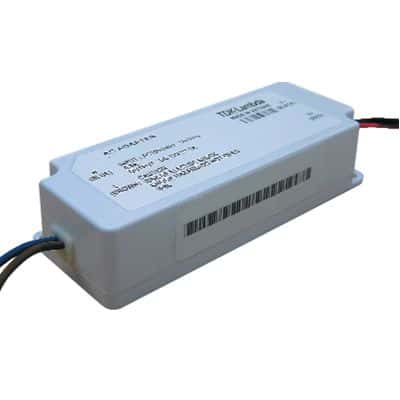

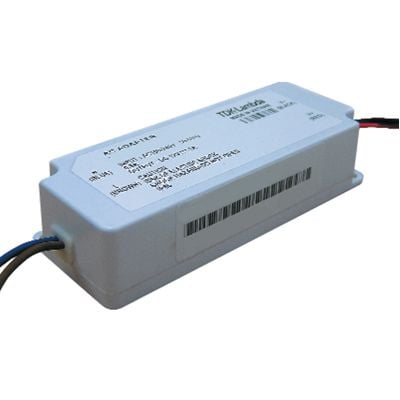

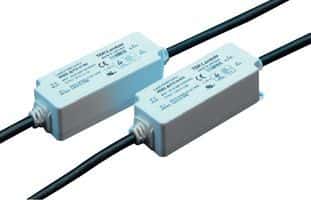

Product Images
