Enclosed AC/DC power supply, 60W output power, delivering 24V at 2.5A. Features constant voltage (CV) operation with 88% efficiency and a wide operating temperature range of -30°C to 70°C. Includes over-voltage protection (OVP) and over-current protection (OCP). Chassis and panel mountable with wire lead termination, rated IP66 for environmental protection. Approvals include UL, CSA, CE, and EN.
MountingChassis Mount, Panel
Power60W
Quick Jump:
Technical Specifications
TDK ALV60242R5 technical specifications.
General
Approvals
UL, CSA, CE, EN
Current - Output 1
2.5A
Depth
35.4mm
Efficiency
88%
Features
OVP, OCP
Height
1.36inch
Isolation Voltage
3kV
Length
9.49inch
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Max Output Current
2.5A
Max Output Power
60W
Max Power Dissipation
60W
Mount
Chassis Mount, Panel
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
2.5A
Output Power
60W
Output Voltage
24V
Package Quantity
5
Ratings
IP66
Reach SVHC Compliant
No
Series
ALV60
Termination
Wire Leads
Voltage - Output 1
24V
Weight
0.838lb
Width
1.7inch
Compliance
RoHS
Compliant
Datasheet
TDK ALV60242R5 Datasheet
Download the complete datasheet for TDK ALV60242R5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

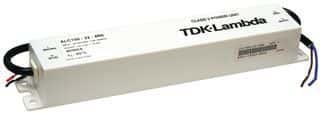

Product Images
