TDK
B32022A3103M000
Film Capacitor, Polypropylene, 1500V, 20% +Tol, 20% -Tol, 0.01uF, Through Hole Mount, RADIAL LEADED, LEAD FREE
PackageRadial
Capacitance10nF
Voltage Rating300V
Quick Jump:
Technical Specifications
TDK B32022A3103M000 technical specifications.
General
| Capacitance | 10nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 5mm |
| Dielectric | PP |
| Dielectric Material | Polypropylene |
| Lead Diameter | 0.8mm |
| Lead Pitch | 15mm |
| Length | 18mm |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 20% |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Width | 18mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32022A3103M000 Datasheet
Download the complete datasheet for TDK B32022A3103M000 to view detailed technical specifications.
No datasheet is available for this part.

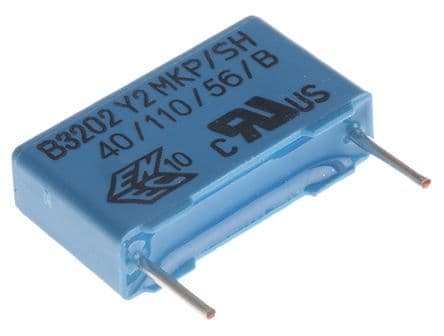

Product Images
