Technical Specifications
TDK B32529C102K289 technical specifications.
General
| Capacitance | 1nF |
| Construction | RADIAL |
| Contact Plating | Tin, Matte |
| Depth | 2.5mm |
| Dielectric | PET |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Length | 6mm |
| Lead Pitch | 5mm |
| Length | 7.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Tolerance | 10% |
| Voltage Rating | 63V |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32529C102K289 Datasheet
Download the complete datasheet for TDK B32529C102K289 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

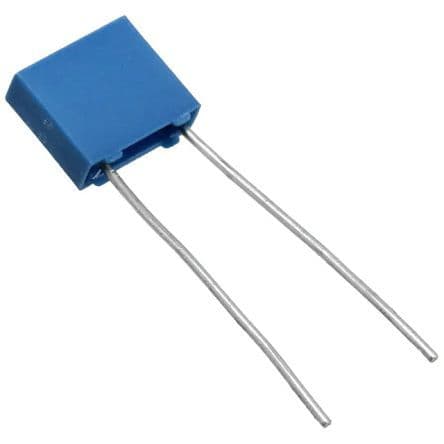

Product Images
