Technical Specifications
TDK B32562H8334K000 technical specifications.
General
| Capacitance | 330nF |
| Package/Case | Radial |
| Dielectric Material | Polyester |
| Height | 14.2mm |
| Lead Pitch | 15mm |
| Length | 16.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 250 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | B32562 |
| Termination | Radial |
| Tolerance | 10% |
| Voltage Rating (AC) | 350V |
| DC Rated Voltage | 630V |
| Width | 11.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32562H8334K000 Datasheet
Download the complete datasheet for TDK B32562H8334K000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

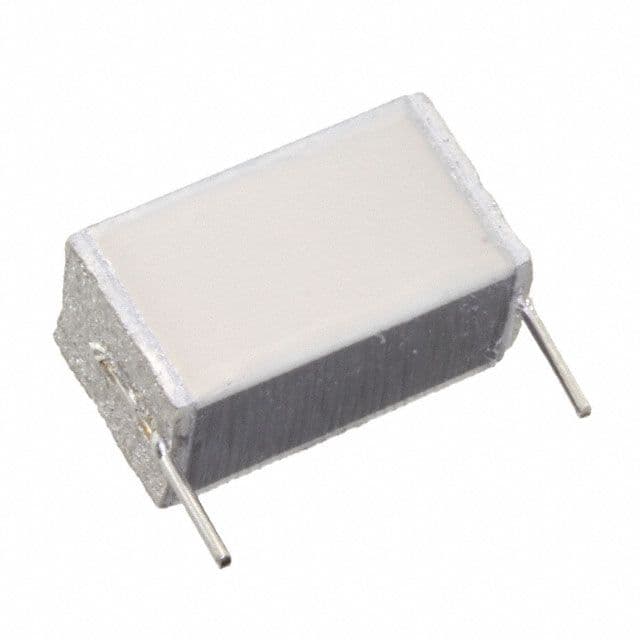

Product Images
