Technical Specifications
TDK B32562J1106K000 technical specifications.
General
| Capacitance | 10uF |
| Package/Case | DIP |
| Construction | RADIAL |
| Depth | 11.8mm |
| Dielectric | PET |
| Dielectric Material | PET |
| Lead Diameter | 0.6mm |
| Lead Pitch | 15mm |
| Length | 16.5mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SilverCap™ B32562 |
| Termination | PC Pins |
| Tolerance | 10% |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 63V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32562J1106K000 Datasheet
Download the complete datasheet for TDK B32562J1106K000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

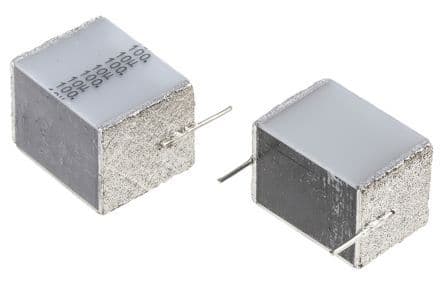

Product Images
